RS-Series
Technology

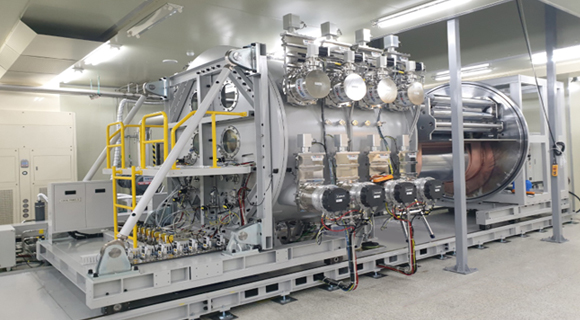

TOPMEC RS-Series, Metal Oxide and Metal Layers will be deposited to Both-side of the film to form a multi-layer at a high rate.
System Techniques
- Full-continuous operation from roll to roll
- Cooling and heating equipment for coating drum
- Available multi layer (Max. 12 Cathode*2)
- Easy Maintenance (Double door open)
- High efficiency, Reduced consumption of Target
- Excellent Web Handling (Non Slip / Wrinkle / Scratch)
- Fast Pumping Speed (2.0E-6, 2hr)
| RS-1350S | RS-2000D | |
|---|---|---|
| Web Materials | PET, PI, PCT, PPS, Etc(Film Base) | |
| Web Thickness | 2.5 ~ 200㎛ | |
| Web Length | 70,000m (Dia. Ø600) @4.5㎛ Thickness | |
| Deposition Width | 1,350mm | 2,000mm |
| Winding Speed | 0.5 ~ 50m/min(Normal 5 ~ 20m/min), Step Range 0.01m/min | |
| Web Tension | 0 ~ 20kgf(±20%) | |
| Cathode | Planar 또는 Rotary Cathode (Single or Dual) | |
| Ultimate Pressure | 7 x 10E-7 torr (without film, 6hr) | |
| Applications | * Metal Deposited Film * ITO, Metal Mesh, EMI Film | |
