RP-Series
Technology

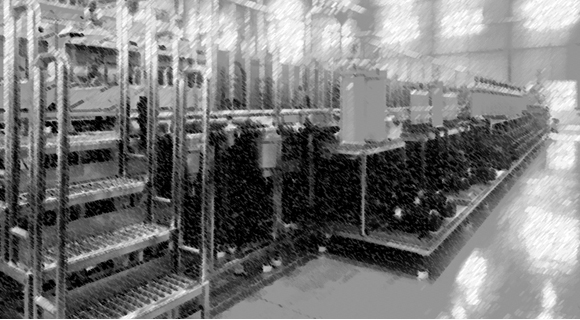

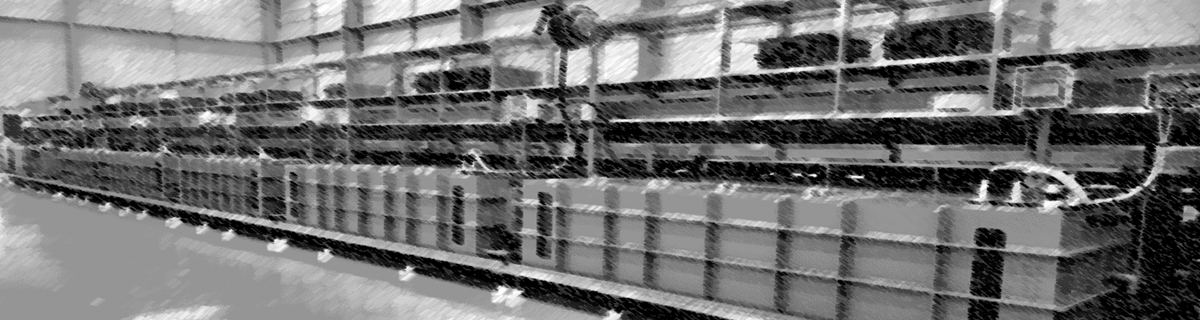

TOPMEC RP-Series, Metal Oxide and Metal Layers will be plated to Both-side of the film to form a multi-layer with uniform thickness.
System Techniques
- Full-continuous operation from roll to roll
- Stable current application method for special Roller
- Realization of various thicknesses
- Easy Maintenance
- High efficiency, Reduced consumption of additive
- Excellent Web Handling (Non Slip / Wrinkle / Scratch)
- Excellent chemical circulation ability
| TMRP-VT 500D | TMRP-HZ 1350D | |
|---|---|---|
| Web Materials | PET, PI, PCT, PPS, Etc(Film Base) | |
| Web Thickness | 2.5 ~ 200㎛ | |
| Web Length | 20,000m (Dia. Ø300) @4.5㎛ Thickness | |
| Deposition Width | ~ 500mm | ~ 1,350mm |
| Winding Speed | 0.5 ~ 4.0m/min(Normal 1.5 ~ 2.5m/min), Step Range 0.01m/min | |
| Web Tension | 0 ~ 12kgf(±10%) | |
| Cathode | Roll Cathode (Single or Dual) | |
| Ultimate Pressure | ~ 3.0ASD (For Mass base) | |
| Applications | * Metal Deposited Film | |
